# Guest Sharing

FlytBase offers the ability to seamlessly share the Live Video streams and drone telemetry of each drone with multiple people spread across various geographies, devices and networks.&#x20;

{% hint style="success" %}
The FlytBase Dashboard provides guests with access to only the drone's telemetry data, live video feeds, and a map displaying the drone's current location.
{% endhint %}

## The operator generates a secure link

### Generate sharing link &#x20;

* Click on the share![](https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2FlMnWHtn7OHhQukqAvp54%2FGroup%20\(2\).png?alt=media\&token=ae9fa95d-7634-462b-92b1-da9e74bb6b11)icon in the Cockpit view.

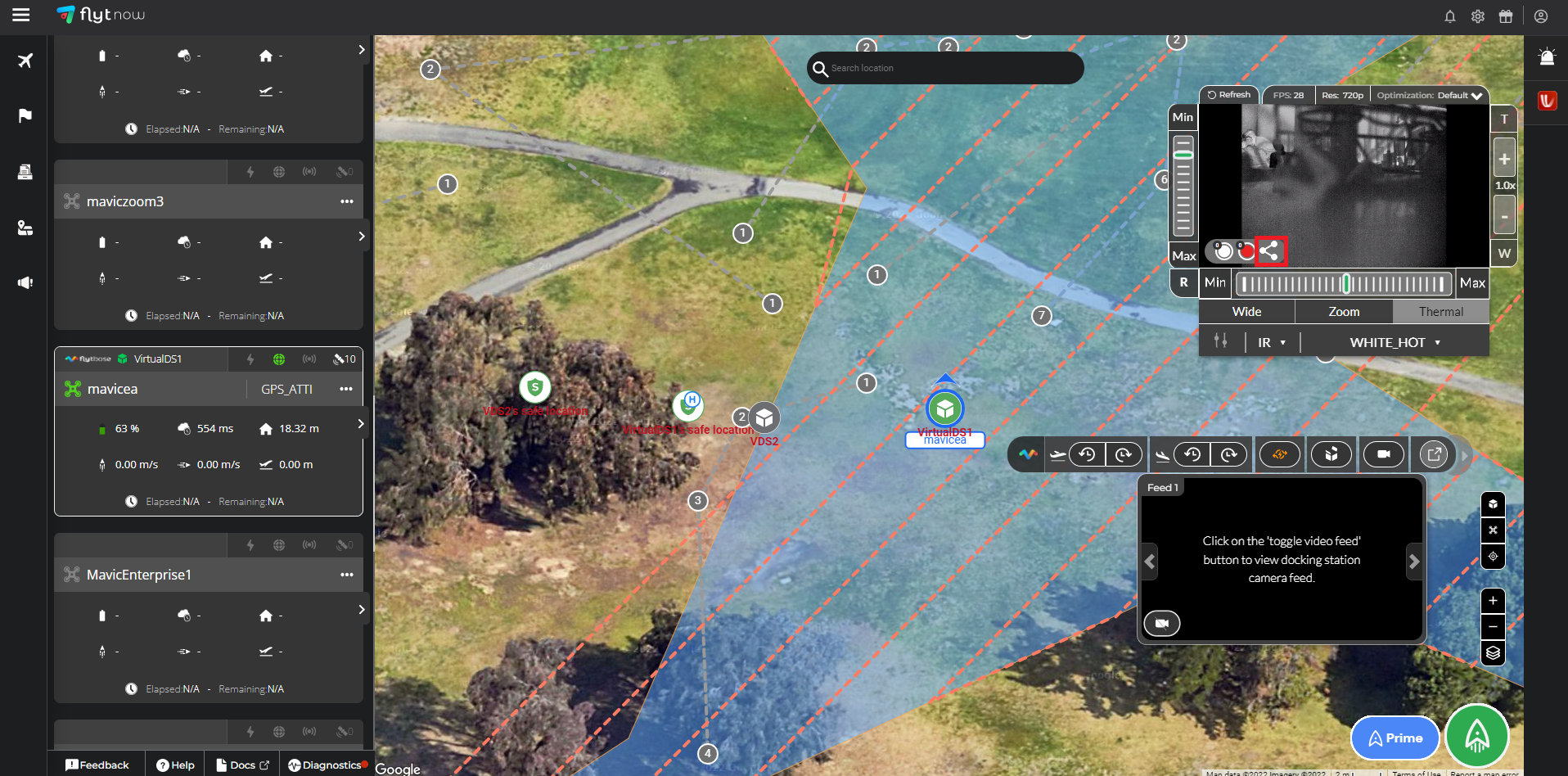

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2FD0fn5sDU800eNDwlBx37%2Fimage.png?alt=media&#x26;token=4038eb3f-9629-4667-8758-eb82b243d7fc" alt=""><figcaption><p>Guest Share button on the bottom of the cockpit window</p></figcaption></figure>

* When the Share dialog opens up, click on **Create new link** to generate the secure share link.

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2FiNMbD3xzo2ydT2AA1mRR%2Fimage.png?alt=media&#x26;token=e417469e-ef65-4fbf-bb4f-87e9b0ba372c" alt=""><figcaption><p>Create a new link</p></figcaption></figure>

* This will open the following dialog box. Enter the recipient's email address. The operator can add multiple email addresses. Select the required views and drones to be shared and click on **Send**.

{% hint style="warning" %}
**Note:** Choose appropriate options for view and drone access when sharing these links.
{% endhint %}

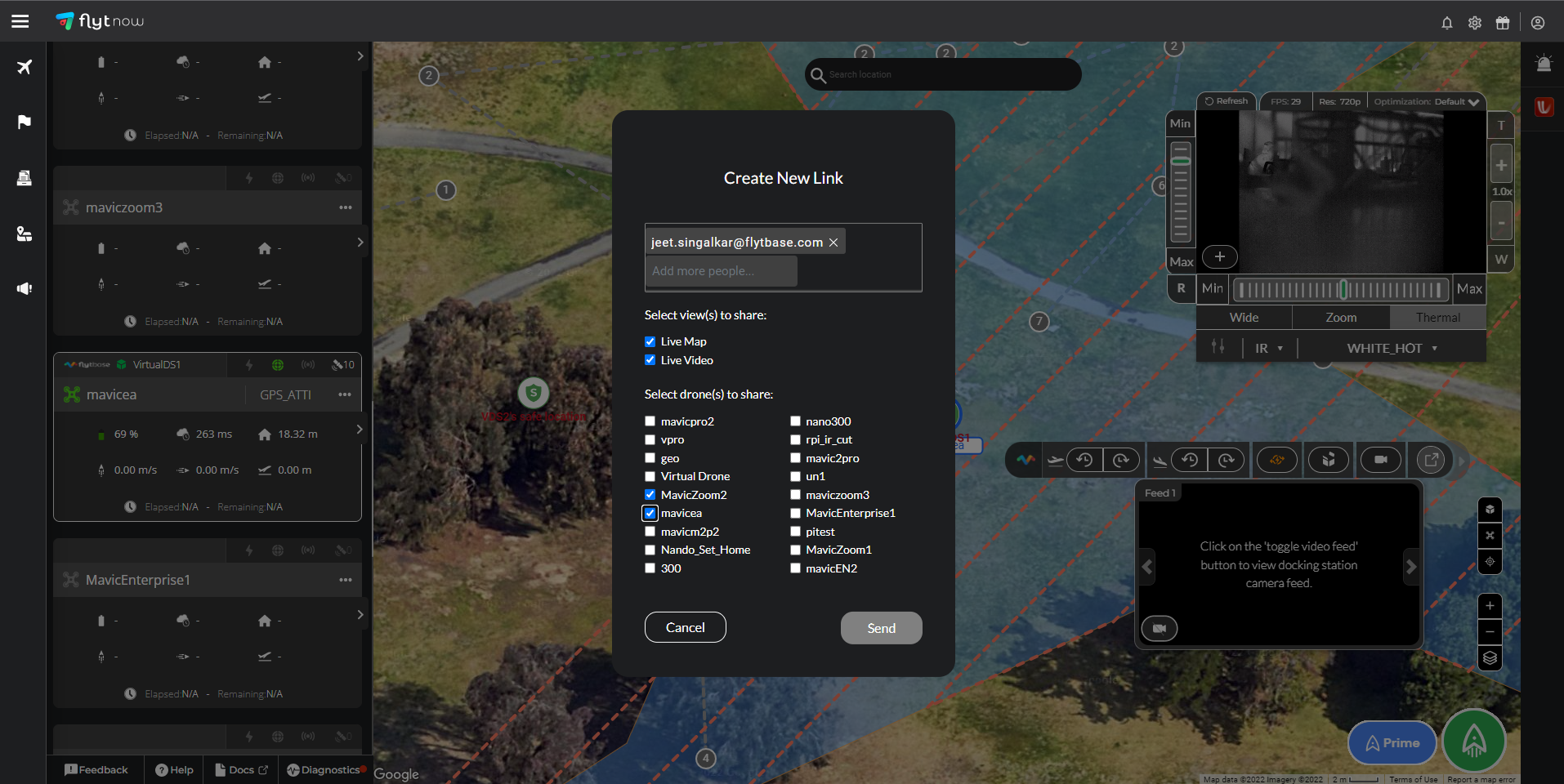

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2FH3D2EwjHLbt78EZYTRjG%2Fimage.png?alt=media&#x26;token=7585ce0e-a2c7-4452-8e1d-1ab8c661f0bd" alt=""><figcaption><p>Configure access for the link</p></figcaption></figure>

### Managing previously shared links &#x20;

* Click on the share icon in the Cockpit view.

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2Fkhzg5dpsBFSpuv8fI63d%2Fimage.png?alt=media&#x26;token=83d180c5-4fa9-4c9d-93d2-5676e387afe0" alt=""><figcaption><p>Guest Share button on the FlytBase dashboard</p></figcaption></figure>

* When the Share dialog opens up, click on the **Manage new link** to generate the secure share link.

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2FxkEPZkUMVB74ZFCYpkkd%2Fimage.png?alt=media&#x26;token=396eef0e-252d-4939-83ae-64eb0193ae0d" alt=""><figcaption><p>Manage links</p></figcaption></figure>

* In the Manage links dialog, the operator can view all the recipients with the drone feed access and **Disable/Enable** it whenever necessary.

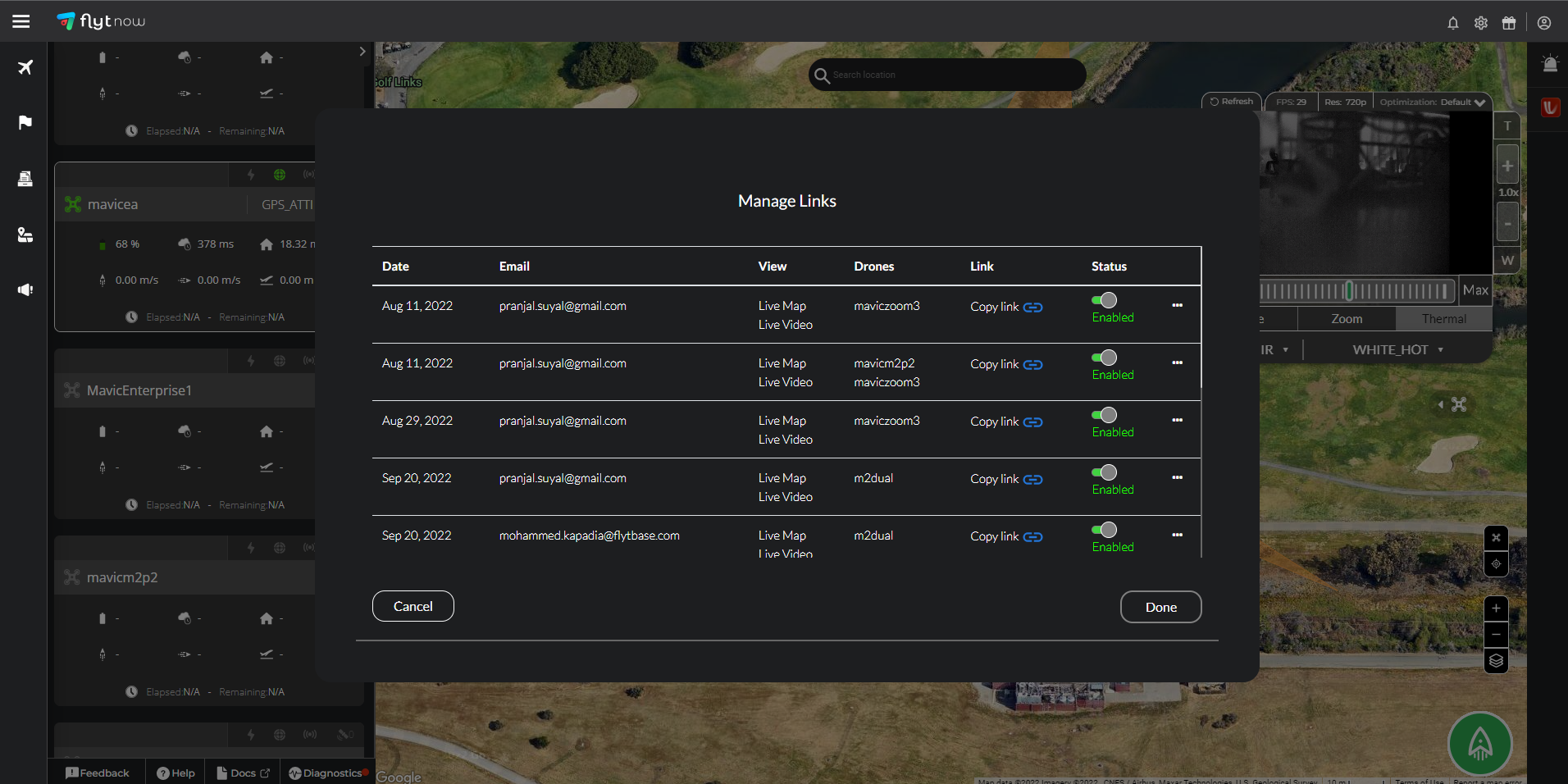

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2FI9XpD9fZP1QpBJy9VDbq%2Fimage.png?alt=media&#x26;token=17ed8911-d6ce-4fa3-8188-daede95e089b" alt=""><figcaption><p>Manage previously shared links</p></figcaption></figure>

* The operator can also **Edit** and **Delete** the previously generated links.

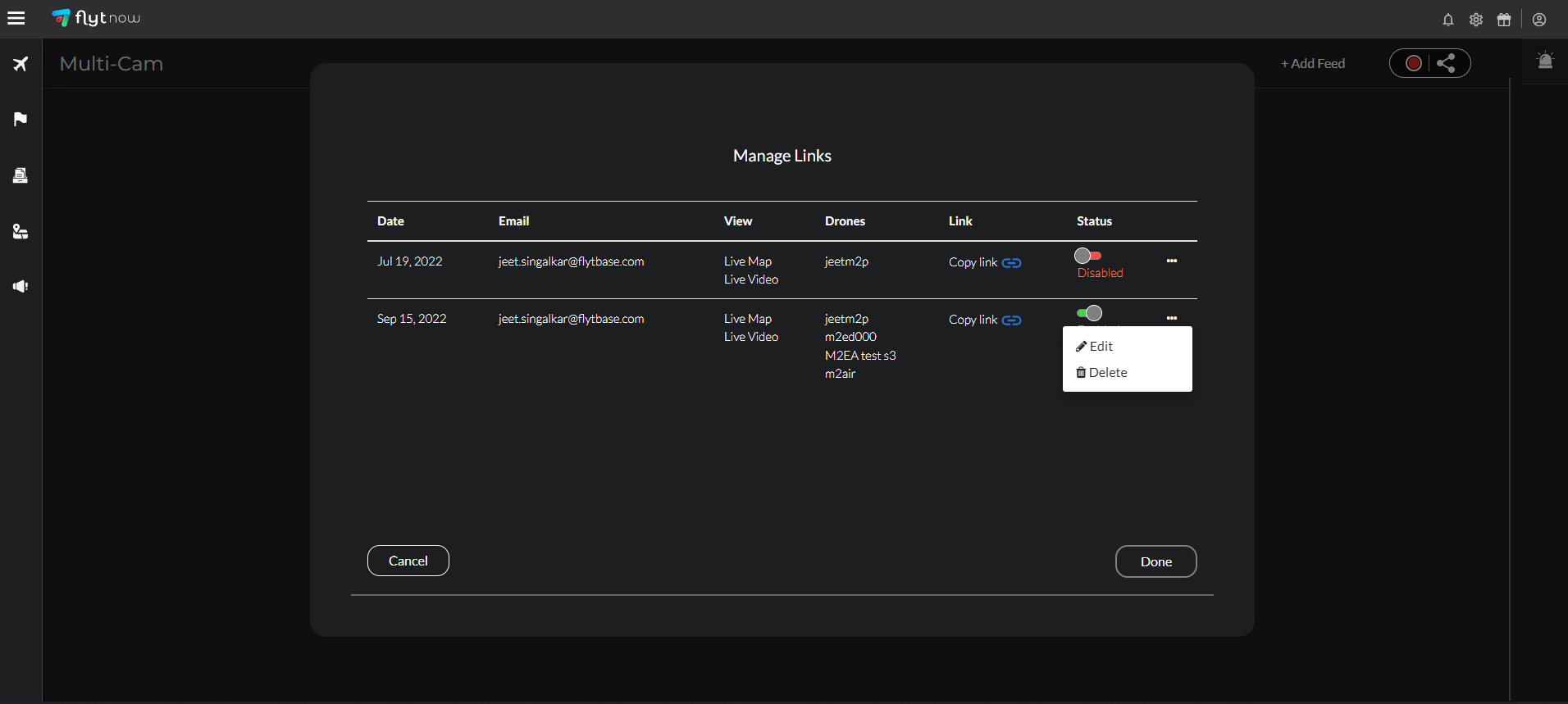

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2F8ghJsMQF8Px4dZoae5zZ%2Fimage.png?alt=media&#x26;token=29b78109-3095-4a3f-8d37-f98305b7bd1e" alt=""><figcaption><p>Edit or delete a previously shared link</p></figcaption></figure>

## For Guests to view Live Feed&#x20;

This section is for viewers who would like to access the live video and map location of the drone(s). The guest will be required to share their email address with the drone operator to be given access to the live drone feed. &#x20;

* The viewer will receive an email with a link and a secure 4- digit PIN.

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2Fk9ueKyjaVcMT5AifuQ8e%2Fimage.png?alt=media&#x26;token=0aff23d0-d779-44f4-a458-8eaeecbd8b60" alt=""><figcaption><p>OTP mail for Guest access</p></figcaption></figure>

* Enter the secure PIN and click on **View Operation**. The viewer can now securely access live drone feed and telemetry.

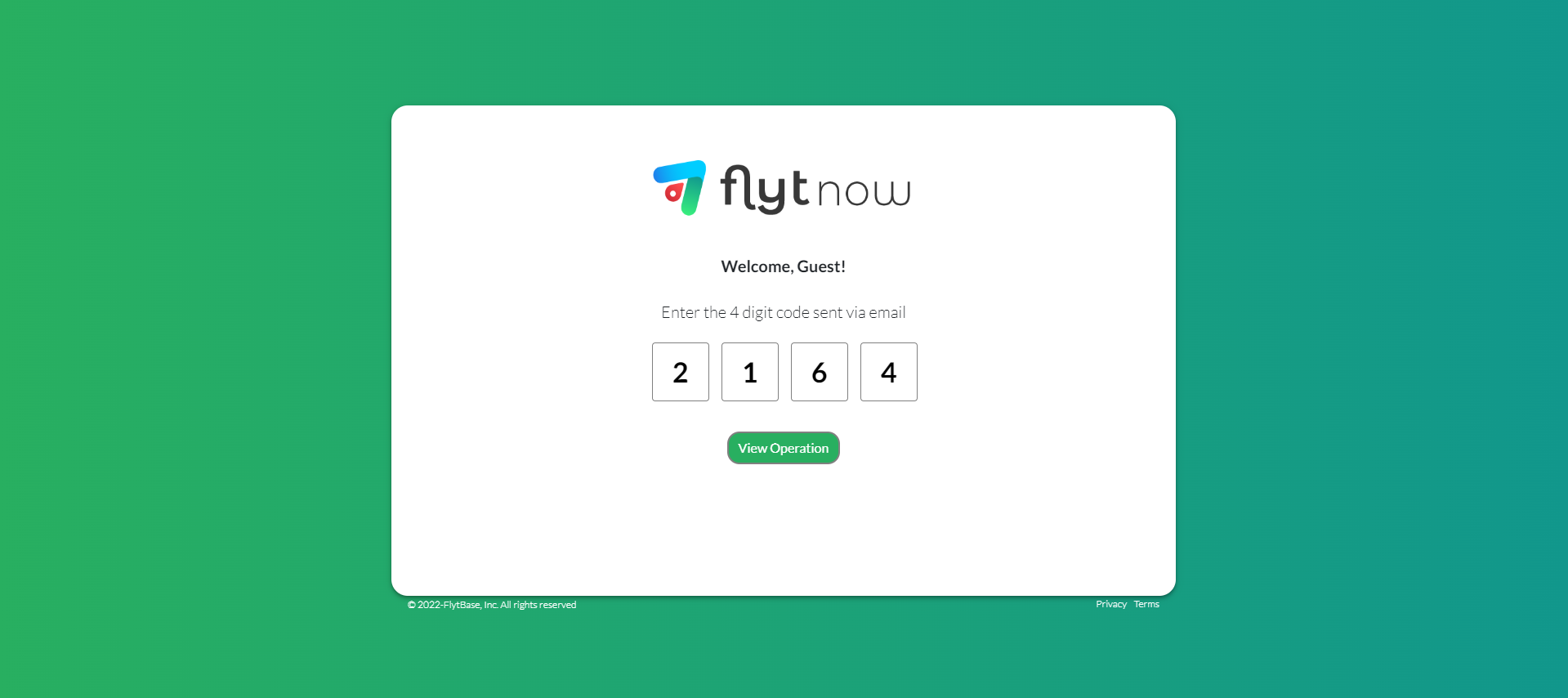

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2FXaH9PKkL6i3Uym4oggTq%2Fimage.png?alt=media&#x26;token=df32b179-922d-481c-b18d-ff8614e45bb5" alt=""><figcaption><p>4-digit OTP for guest</p></figcaption></figure>

* The Guest View window will show the following:
  * Basic telemetry which includes battery percentage, distance of the aircraft from its home location, current altitude, horizontal speed, vertical speed, the status of the drone and its location.
  * Live video feed from the drone's camera.

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2FLXiCIqnAYtBTzvxPW1id%2Fimage.png?alt=media&#x26;token=c12bd145-c899-4156-a91c-050042c7661f" alt=""><figcaption><p>Secure Guest Share window</p></figcaption></figure>
