# Hextronics Global Advanced

{% hint style="info" %}
The operator should complete all the steps of the setup to ensure that the docking station works as intended.
{% endhint %}

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2FytUueDFk7Hunmnezol4B%2Fimage.png?alt=media&#x26;token=10dc2e53-ac1a-4843-a58f-c96e3218a859" alt=""><figcaption><p>Hextronics Global Advanced</p></figcaption></figure>

## Unboxing and Hardware Setup&#x20;

* Unpack and carefully place the Hextronics Global Advanced docking station on a flat surface. Set the accessories box aside.&#x20;

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2FlDWAakjRCwtRxluCkI6x%2Fimage.png?alt=media&#x26;token=db5f46ec-e74e-416f-84d0-003f9c2514ee" alt=""><figcaption><p>Hextronics Global Advanced</p></figcaption></figure>

* Use the keys received in the package to unlock the top panel and open it.

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2Fn4ooQ5EfCt97jxUiZpGS%2Fimage.png?alt=media&#x26;token=5070b6e5-641f-427d-82fe-cfb1650cb207" alt=""><figcaption><p>Opening the top panel</p></figcaption></figure>

* Cut the 5 constraining zip ties and remove the 2 foam separators from the following parts of the station:
  * 1 foam separator and 1 zip tie on the battery gripper.
  * 1 foam separator and 2 zip ties in the centre.
  * 2 zip ties on the left and right side.

{% hint style="warning" %}
Please do not proceed without removing all the zip ties and foam separators.
{% endhint %}

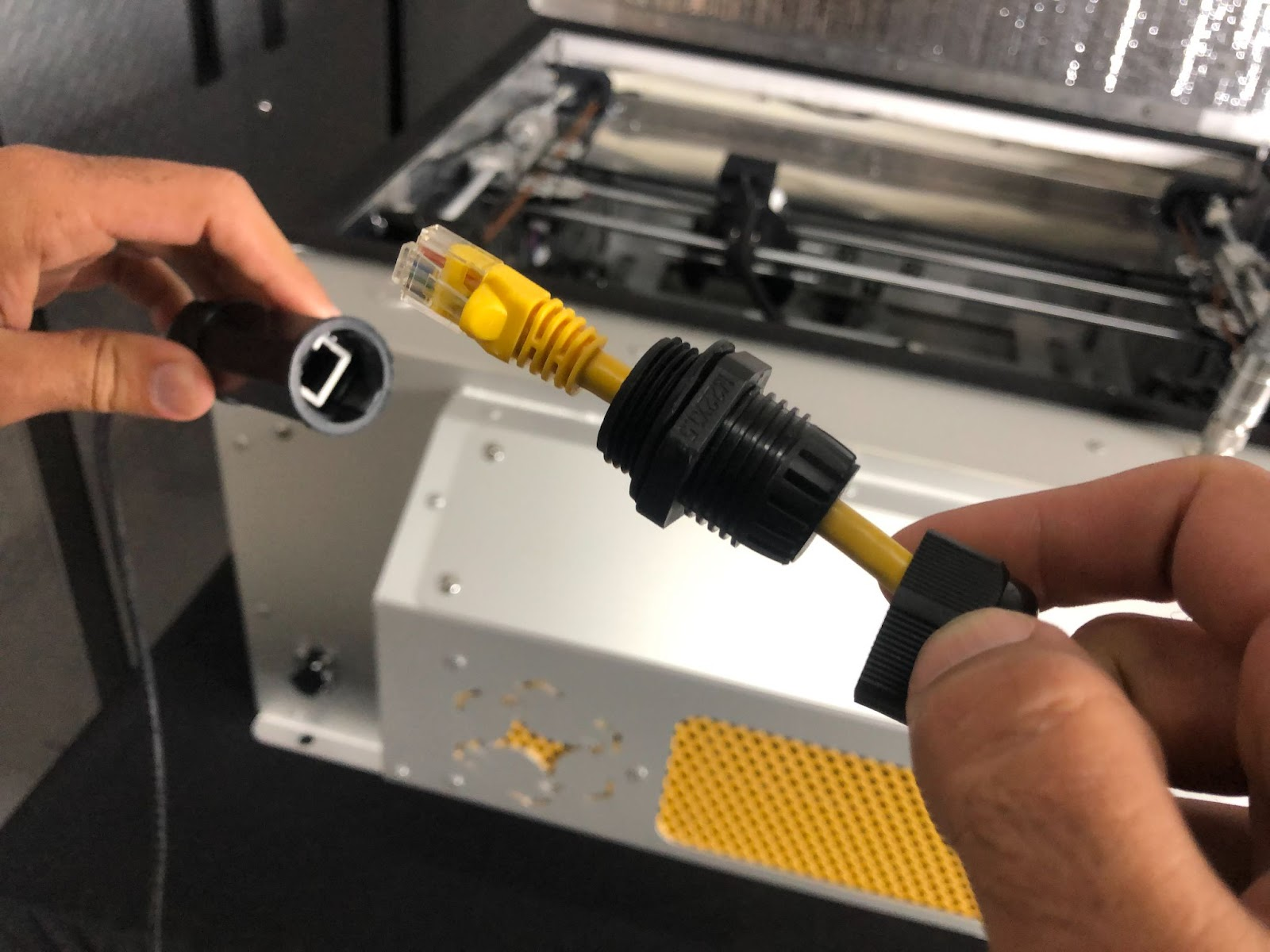

* To connect the station to the internet, the operator should insert the Ethernet cable (found in the accessories box) into the Ethernet port of the docking station.

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2FUEqbGTA9yfUcgJjxSC7p%2Fimage.png?alt=media&#x26;token=a91755ce-06f5-4dcc-84b5-b7d1fbded584" alt=""><figcaption><p>Ethernet port</p></figcaption></figure>

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2FlLTwCf0NPQtsRhoTnRUI%2Fimage.png?alt=media&#x26;token=42803786-c2d3-4b86-bf60-57d1a0bd9183" alt=""><figcaption><p>Connecting the ethernet port</p></figcaption></figure>

* Attach the two antennas found within the accessories box to the antenna mounts by hand on top of the station.

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2FF3Uhzy5fxZMIR1P7eZlP%2Fimage.png?alt=media&#x26;token=e069f212-095b-4224-aeff-501fbf821179" alt=""><figcaption><p>Connecting the antennas</p></figcaption></figure>

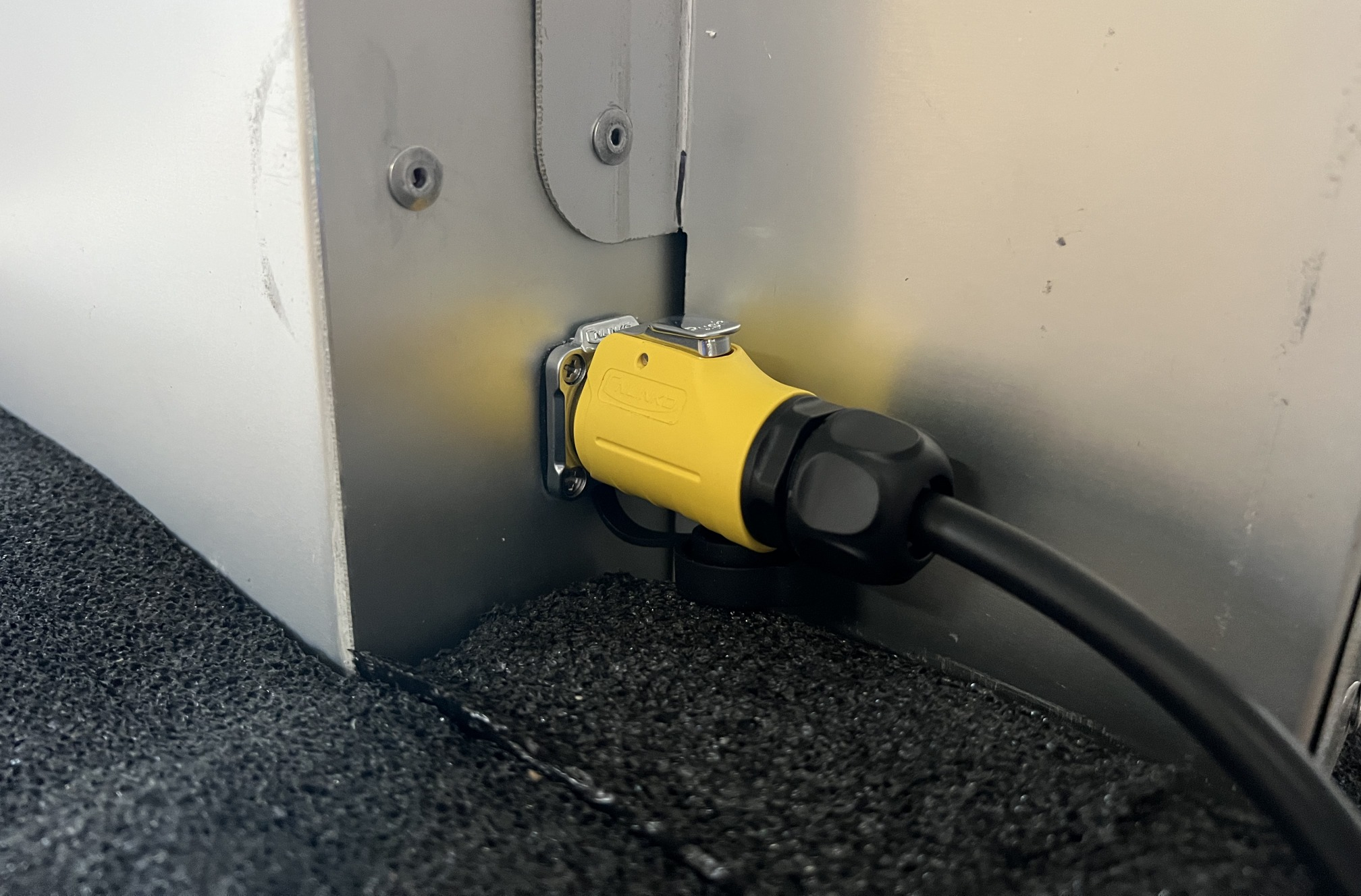

* Plug one end of the yellow power cord into the station & the other end into a wall socket and wait 2-3 minutes for the system to boot up.

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2Fnl1z2ZD8LUKswibLuHhd%2Fimage.png?alt=media&#x26;token=ed6ab19a-cf10-4604-93f4-3dd91d3b3e17" alt=""><figcaption><p>Insert the power cable into the port at the back of the station</p></figcaption></figure>

## Hextronics Control Panel Login & Station Calibration

* Open the Hextronics Control Panel login page by:
  * &#x20;Mobile Device: Scanning the QR code under the roof panel OR&#x20;
  * Desktop PC: Entering the Hex-Name URL & password on your web browser (Found in the accessories box, Welcome email, or on the QR sticker)

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2Ftlt17GsvcFxNt8b63VVg%2Fimage.png?alt=media&#x26;token=a2a8fe82-d739-4e9b-a703-0f2a699b5482" alt=""><figcaption><p>Hextronics Control Panel login page</p></figcaption></figure>

{% hint style="info" %}
The unique URL (a website link) and password are shared by Hextronics.
{% endhint %}

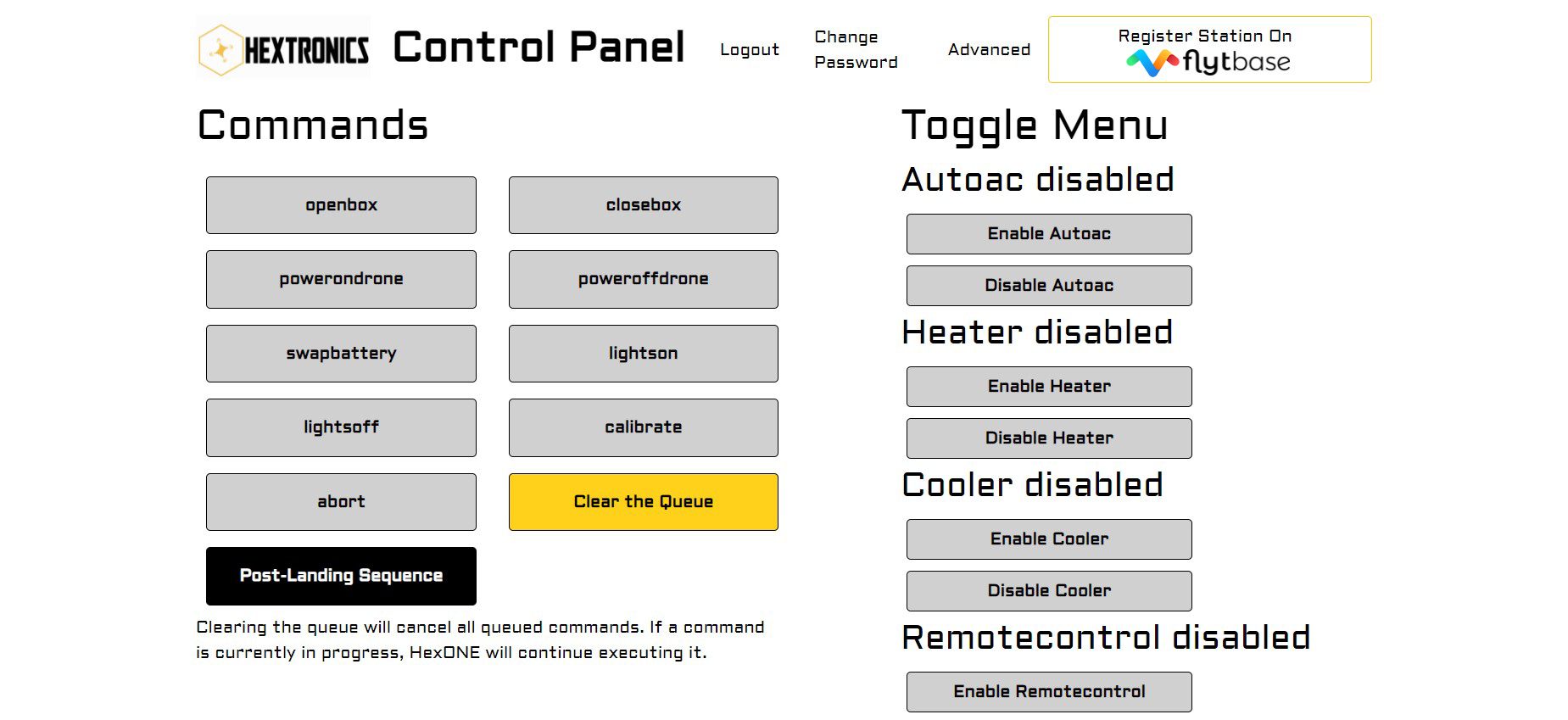

* On the Control Panel, click **openbox** to open the station's tray.&#x20;

<figure><img src="https://2978718896-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGYYKeStDMySe3v9HDpIo%2Fuploads%2FNZFCAoaOcVr5HP7SV9fo%2Fimage.png?alt=media&#x26;token=46907fb3-d01c-4113-a99c-d7d708401304" alt=""><figcaption><p>Hextronics Control Panel page</p></figcaption></figure>

* Attach the DJI propeller guards, Hextronics propeller guides and battery to the drone. Place the drone on the tray with the gimbal facing away from the station interior.

{% hint style="danger" %}
Do not attach any propellers to the drone at this stage of the setup.
{% endhint %}

* Click **closebox** to close the tray.
* Now place up to five Mavic 2 batteries into the battery slots of the station and click **swap battery** on the Hextronics Control Panel to perform the first battery swap.
* Once the first swap is successful, proceed with setting up the devices on FlytBase.

{% hint style="warning" %}
In case of any hardware issues during battery swap or other operations, please contact <mark style="color:blue;"><support@hextronics.tech></mark>
{% endhint %}

After the Docking station hardware is setup navigate to DiaB Setup Section to configure the DS and Drone on the FlytBase dashboard.

{% content-ref url="../../diab-setup" %}
[diab-setup](https://legacydocs.flytbase.com/diab-setup)
{% endcontent-ref %}
